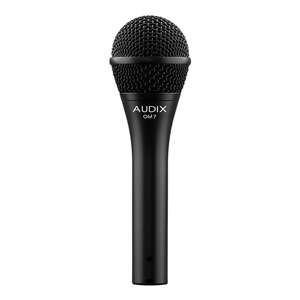

Audix OM7 Professional Dynamic Stage Vocal Microphone - Hypercardioid

The OM7 vocal dynamic microphone is used by professional sound companies, front of house and mixing engineers as well as high-profile fixed installations. The OM7 provides unprecedented gain before feedback on concert level stages without sacrificing sound quality. In addition, the mic is very resistant to feedback on extremely loud stages and for performers who tend to “cup” the microphone with both hands.

In order to achieve these extraordinary performance benefits, the OM7 dynamic vocal microphone is designed with an unconventionally low output level (8-10 dB lower than typical dynamic microphones). This low output level acts as a natural “pad” at the capsule in order to maintain high fidelity at the source. The OM7 hypercardioid microphone is best suited for use with high-quality mixing consoles that have plenty of headroom to compensate for the low gain.

Designed, assembled, and tested by Audix in the USA..

Specifications

• Transducer Type
• Dynamic
• Frequency Response
• 48 Hz – 19 kHz
• Polar Pattern
• Hypercardioid
• Output Impedance
• 50 ohms
• Sensitivity
• 0.8 mV / Pa @ 1k
• Capsule Technology
• VLM Type C
• Off-Axis Rejection
• >30 dB
• Maximum SPL
• ≥144 dB
• Power Requirements
• None
• Connector
• 3-pin XLRm
• Polarity
• Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
• Zinc Alloy / Black Finish
• Weight
• 307 g / 10.8 oz
• Length
• 176 mm / 6.9 in





What's in the box...

• 1x OM7 Vocal Microphone
• 1x MC1(opens a new window) Microphone Clip
• 1x P1 Carrying pouch





Model:	OM7
Manufacturer:	Audix
