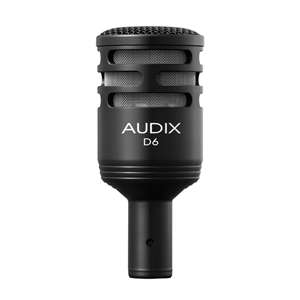

Audix D6 Sub Impulse Kick Drum Mic

---

The D6 is a U.S.-made instrument mic designed for live and studio performance.

Characterized with a cardioid pick-up pattern and a frequency response of 30Hz-15kHz, the D6 instrument mic is an ideal choice for kick drum, bass cabs, and other instruments requiring low-frequency reproduction.

The Audix mic comes in a transformerless design, low impedance, and a balanced output allows interference-free performance even with long cable runs. The D6 mic, a one-piece body precision machined from solid aluminum, consists of a durable hard coat anodized finish.

Specifications

• Transducer Type
• Dynamic
• Frequency Response
• 30 Hz – 15 kHz
• Polar Pattern
• Cardioid
• Output Impedance
• 280 ohms
• Sensitivity
• 0.8 mV / Pa @ 80 Hz
• Capsule Technology
• VLM Type E
• Off-Axis Rejection
• >20 dB
• Maximum SPL
• ≥144 dB
• Power Requirements
• None
• Connector
• 3-pin XLRm
• Polarity
• Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish
• Machined Aluminum / Black Finish
• Weight
• 254 g / 8.9oz
• Length
• 117 mm / 4.6 in

What's in the box?

• 1x D6 Instrument Microphone
• 1x DCLIP(opens a new window) Microphone Clip
• 1x P1 Carrying Pouch

Model:	D6AUDIX
Manufacturer:	Audix
