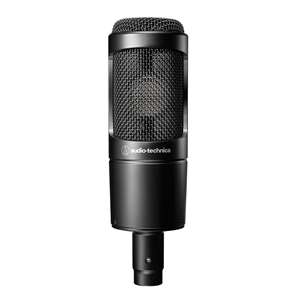

Audio-Technica AT2035 Large Diaphragm Cardioid Condenser Microphone

---

AT2035

Designed for critical home/project/professional studio applications and live performance, this side-address cardioid studio condenser delivers exceptional detail and low noise. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.

Features

• Large diaphragm for smooth, natural sound and low noise
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom shock mount provides superior isolation
• Switchable 80 Hz high-pass filter and 10 dB pad
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Includes custom shock mount & protective pouch

Specifications

• Element
• Fixed-charge back plate, permanently polarized condenser
• Polar Pattern
• Cardioid
• Frequency Response
• 20-20,000 Hz
• Low Frequency Roll Off
• 80 Hz, 12 dB/octave
• Open Circuit Sensitivity
• -33 dB (22.4 mV) re 1V at 1 Pa
• Maximum Input Sound Level
• 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)
• Noise
• 12 dB SPL
• Dynamic Range
• 136 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio
• 82 dB, 1 kHz at 1 Pa
• Phantom Power Requirements
• 11-52V DC, 3.8 mA typical
• Switches
• Flat, roll-off; 10 dB pad (nominal)
• Weight
• 403 g (14.2 oz)
• Dimensions
• 170.0 mm (6.69") long, 52.0 mm (2.05") maximum body diameter
• Output Connector
• Integral 3-pin XLRM-type
• Accessories Included
• AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• Audio-Technica Case Style
• R5

Model:	AT2035
Manufacturer:	Audio Technica
