Audio-Technica AT2041SP Studio Mic Pack

---

Studio Miking Essentials

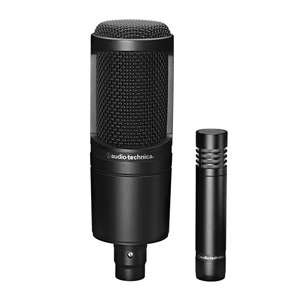

AT2041SP Studio Pack includes: AT2020 Side-address cardioid condenser microphone, AT2021 Small-diaphragm cardioid condenser microphone, Pivoting threaded stand mount for the AT2020, Professional stand clamp for the AT2021, and Two protective pouches.

The AT2041SP Studio Pack offers two versatile 20 Series condenser microphones for use in home, project and commercial studios. Equally at home with digital and analog recording devices, the two included studio condensers deliver remarkable specs and superior build. The critically acclaimed AT2020 side-address condenser is ideal for vocal and instrument applications, while the new AT2021 small-diaphragm condenser is a natural for acoustic instruments, overheads, hi-hat and piano.

Audio-Technica’s stringent quality/consistency standards set both microphones apart from other mics in their class. Each offers a wide dynamic range and handles high SPLs with ease. An innovative pivoting stand mount is included along with a microphone clip and protective pouches.

AT2020 Side-address cardioid condenser microphone

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

AT2021 Small-diaphragm cardioid condenser microphone

• Ideal for acoustic guitar, overheads, piano and group vocals
• Condenser design for studio-quality vocal and instrument applications
• Excels in high-SPL applications
• Extended response for smooth, natural sonic characteristics
• Low-mass element for superb transient response
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged design and construction for reliable performance
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

Specifications

• Element
• Fixed-charge back plate, permanently polarized condenser
• Polar Pattern
• Cardioid
• Frequency Response
• AT2020: 20-20,000 Hz
  AT2021: 30-20,000 Hz
• Open Circuit Sensitivity
• AT2020: –37 dB (14.1 mV) re 1V at 1 Pa
  AT2021: –39 dB (11.2 mV) re 1V at 1 Pa
• Maximum Input Sound Level
• AT2020: 144 dB SPL, 1 kHz at 1% T.H.D.
  AT2021: 145 dB SPL, 1 kHz at 1% T.H.D.
• Noise
• AT2020: 20 dB SPL
  AT2021: 19 dB SPL
• Dynamic Range
• AT2020: 124 dB, 1 kHz at Max SPL
  AT2021: 126 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio
• AT2020: 74 dB, 1 kHz at 1 Pa
  AT2021: 75 dB, 1 kHz at 1 Pa
• Phantom Power Requirements
• 48V DC, 2 mA typical
• Weight
• AT2020: 12.1 oz (345 g)
  AT2021: 2.9 oz (83 g)
• Dimensions
• AT2020: 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
  AT2021: 4.00" (101.5 mm) long, 0.83" (21.0 mm) maximum body diameter
• Output Connector
• Integral 3-pin XLRM-type
• Accessories Included
• AT2020: Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
  AT2021: Stand clamp; soft protective pouch

Model:	AT2041SP
Manufacturer:	Audio Technica
