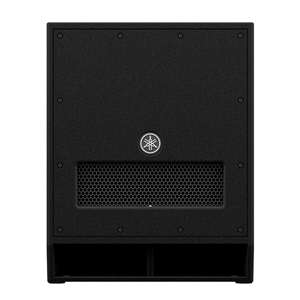

Yamaha DXS15mkII 15" Powered Subwoofer
DXS15MKII
Please contact us for more info on this item
Strait Music
South Austin:
(512) 476-6927
Strait Music
North Austin:
(512) 918-3743
South
1 in stock.
North
Out of stock
SERIOUS. BASS. PERFORMANCE.
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity.
The new DXS15mkII is capable of producing tight, thunderous low frequencies as low as 40Hz at a maximum SPL of 135dB. This updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free. A custom made, long throw 15” driver and 1020W of Class D power allow high output all night long!The DXS15mkII also features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end.
Feel the Power
DXS Series were made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events— even when it's cranked to the maximum SPL.
High-Efficiency 1020W Class-D Amplifier
The DXS’s high-performance Class-D amplifier is capable of producing up to 1020W of power, and a maximum SPL of 136dB, delivered with exceptional clarity and accuracy. Both the DXS15mkII and DXS12mkII can produce 3dB more SPL than previous models.
Custom Designed Transducer
The high-output woofer of DXS18 features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. The DXS12mkII and DXS15mkII both feature 2.5" voice coil magnets.
Band-Pass Type Enclosure
All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.
Durable, Portable, and Road-Ready.
Ergonomic and compatible features just made your system setup and transport a whole lot easier.
Rugged coating for superior protection
Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
Compact and portable design enclosure
Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15” and 12” predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.
Optional
Optional Wheel Kit
For more fast and convenient setup of your DXS subwoofers, optional wheels are available, featuring radial ball bearings that ensure smooth running and a rattle-free performance.
Optional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during operation in outdoor performances, and in dusty and dirty warehouse storage, or the rigors of equipment transport on the road. Trilaminar polyester fabric with an inner cushion protect from impacts. Slits allow easy access to the handles for carriage.
Dual pole socket
For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
You Have Assumed Control
With all this power at your disposal it's a comfort to have Yamaha's own innovative DSP and control options to ensure your performances are executed exactly as you planned.
D-XSUB Bass Processing
Powerful D-XSUB processing gives you total control of your low frequency. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from smaller cabinets. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.
Selectable X-OVER(80/100/120Hz)
Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).
Specifications:
- Speaker type
- 15" powered subwoofer, Band-pass type
- Frequency range (-10dB)
- 40 Hz - 150 Hz
- LF Component
- 15" cone, 2.5" voice coil
- Output power
- Dynamic:1020W / Continuous: 800W
- Maximum output level (1m; on axis)
- 135dB SPL
- I/O connectors
- INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
- Processors
- D-XSUB: BOOST, XTD LF, NORMAL
- Cooling
- Natural convection
- Power requirements
- 100V – 240V, 50Hz/60Hz
- Power consumption
- 100W
- Pole socket
- 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions
- Width
- 480 mm (18.90”)
- Height
- 611 mm (24.06”)
- Depth
- 614 mm (24.17”)
- Net weight
- 36.0 kg (79.4lbs)
- Others
- Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
| Model: | DXS15MKII |
| Manufacturer: | Yamaha |
