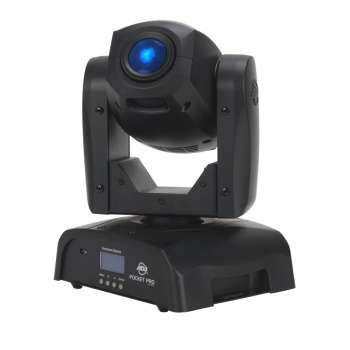

American DJ Pocket Pro High Output 25 Watt LED

---

The new Pocket Pro is truly a transformed fixture from the base up. American DJ listened to what customers wanted in a compact and affordable spot moving head. On the top of the head is a manual focusing wheel that allows users easy and precise focusing of the GOBOs so they look crisp in a variety of applications.

Brighter than its predecessor, the Pocket Pro features a new LED source that provides the output and punch needed in most smaller venues. The Pocket Pro is armed with a mighty 25W LED engine with crisp optics. Like the Focus Spot Series, the Pocket Pro is designed with the EZ OPEN cover giving full access to the GOBO Wheel. Its compact size and light weight make it ideal for mobile entertainers, small club, and bars, roller rinks, bowling centers or perfect for events and custom GOBO projection in a lounge or retail environment.

ADJ included a locking powerCon for power, so you never need to worry about vibration or not having a secure AC connection. This fixture features seven colors plus white and 7 replaceable GOBOs (plus 4 additional GOBOs included in the box). The GOBOs and colors are on separate wheels. These features are not typically found in moving heads of this class.

Its compact size and light weight makes it ideal for mobile entertainers, small club and bars, venues with low ceilings, roller rinks, bowling centers or any mobile production.

Control methods include: Sound active with 4 built-in shows, a DMX controller to create your own light shows, Airstream DMX Bridge, or myDMX control software.

Specifications

• High output mini Moving Head with a bright white 25W LED source
• 7 Colors + white
• 7 replaceable gobos + spot
• Includes kit of 4 additional GOBOs
• Separate color & gobo wheels
• Manual focus
• 3 Operational modes: DMX, Sound Active & Internal Show control modes
• 2 DMX channel modes: 11 & 13 Channel modes
• Stand Alone or Primary/Secondary Set Up
• 4 Built-in shows
• Gobo Shake effect
• Gobo scroll mode
• Beam Angle: 15-degrees
• 540° pan / 230° tilt (16-bit)
• Pan /Tilt Inversion mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Fan Cooled
• Omega bracket included
• Linkable: DMX via 3-pin XLR In/Out connection
• With Wired Digital Communication Network
• GOBO size: 18.4 mm (13mm viewable)
• Optional ADJ UC IR Compatible (Not Included) and Airstream IR Compatible (transmitter Not included)
• Power consumption: 53W
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• LED Source: 25W White LED source (Rated at approximately 50,000 hrs)
• Dimensions (LxWxH): 6.37” x 7.87” x 11.30” / 162 x 200 x 287mm
• Weight: 7.3 lbs. / 3.6 kgs.
• ETL Approved

Model:	POC723
Manufacturer:	AdJ
