Warm Audio WA-14 Large Diaphragm Condenser Microphone

Blast From The Past

The WA-14 is a classic condenser microphone based on the early 1970's microphone used on countless hit records. The WA-14 utilizes a custom all-brass CK12-style capsule, CineMag USA transformer, and a fully discrete signal path. The WA-14 can be used on an array of sources, such as; punchy/warm intimate lead vocals, acoustic/electric guitars, bass, drums/percussion, strings/orchestral material, and many other sources. The WA-14 provides a realism and thickness that is true to the vintage microphone, but now at an affordable price.

All Brass Capsule

The WA-12-B-60V is an all-brass, edge-terminated capsule that captures all the smoothness, rich top end, and warm vintage sonics of the original CK12 capsule. The WA-12-B-60V uses a variant CEK-12 back plate as a basis, which overcomes manufacturing limitations of the original CK12 capsule. The o-ring and housing of the WA-12-B-60V are all made from brass (no teflon parts), and the diaphragm is 24k gold sputtered 6 micron, NOS PET film (mylar). The end result is a very consistent, reliable capsule which matches the frequency response and tonality of the classic 1970's classic capsule.

Features

• Large Diaphragm Condenser Microphone With Variable Pad And Three Polar Patterns (Cardioid, Figure Of Eight, Omnidirectional)
• Custom CineMag USA Transformer
• Features Custom WA-12-B-60V Edge-Terminated, Dual-Backplate, All-Brass Vintage CK12-Style Capsule
• 3-Pin Gold Plated XLR

Specifications

• Frequency Range:
• 20Hz To 20kHz
• Output Pad:
• 0dB, -10dB, -20dB
• Polar Patterns:
• Cardioid, Figure Of Eight And Omnidirectional
• Output Impedance:
• 150 Ohms
• Self Noise:
• -115dB
• Requires:
• +48V Phantom Power
• Color:
• Black

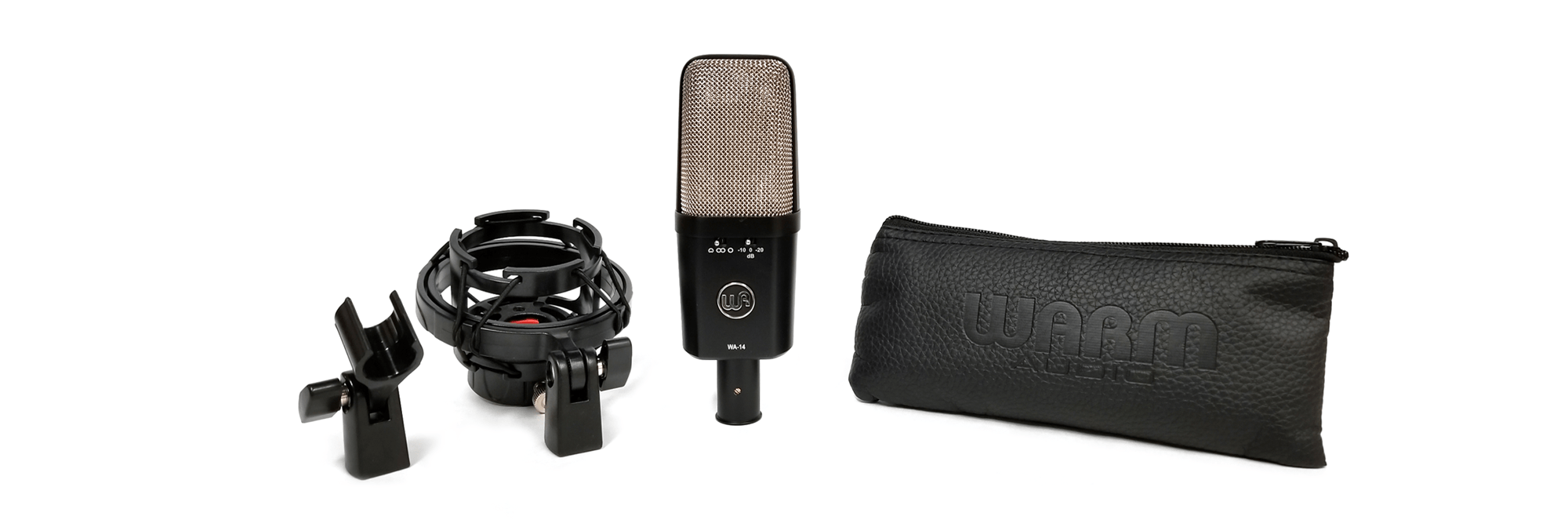

• Includes:
• Shock Mount, Hard Mount, And Protective Pouch





Model:	WA14
Manufacturer:	Warm Audio
