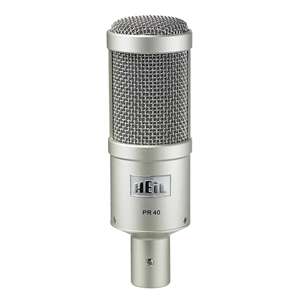

Heil Sound PR40 Dynamic Cardioid Studio Microphone

---

The Heil PR 40 microphone boasts the widest frequency range of any dynamic mic in the Heil PR series. The PR 40 incorporates Heil’s expert understanding of phasing plug placement, along with the use of a very large low mass diaphragm, and custom magnet metals housed in a specially designed microphone body.

The PR 40 diaphragm is shock mounted such that it is completely decoupled from the anodized Champagne matte-finished steel body. In addition to dual mesh screens, each made with different diameter screen apertures, there is an internal breath blast filter on the diaphragm element itself, providing superb response for the human voice across the entire vocal range, without “popping” noises. The PR 40 will provide flawless, smooth, flat response from 28 Hz all the way up to the 18k Hz, making this a great microphone for everything from vocals, to bass drums and tom drums, to guitar and bass cabinet mic’ing and more.

Specifications

• Output Connection
• 3 pin XLR
• Element Type
• Dynamic
• Frequency Response
• 28 Hz – 18 kHz
• Polar Pattern
• Cardioid
• Rear Rejection @ 180 degrees off axis
• -40 dB
• Impedance
• 600 ohms balanced
• Output Level
• -53.9 dB @ 1 kHz
• Weight
• 13.5 oz
• Max SPL
• 148 dB

Included

• Mic Clip
• Padded Zipper carrying bag

Model:	PR40HEIL
Manufacturer:	Heil
