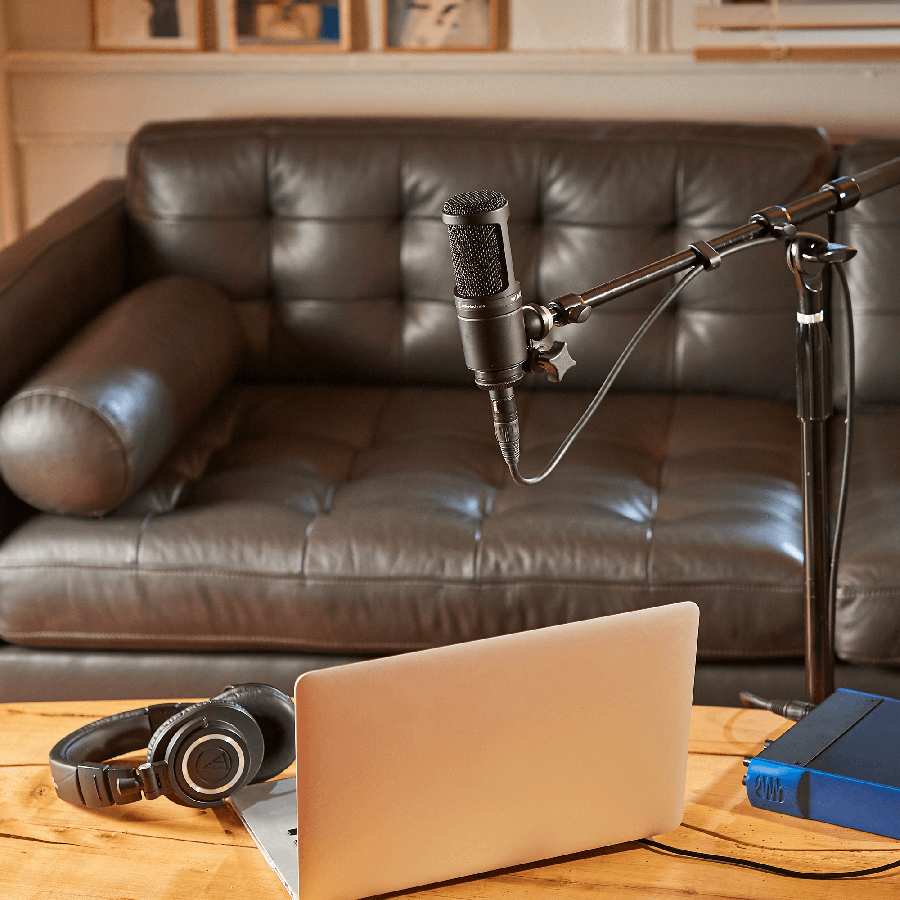

Audio-Technica AT2020 Cardioid Condenser Microphone

---

Cardioid Pattern | Condenser | XLR Output | Side-address Microphone

The AT2020 is an affordable microphone offering versatile features. The AT2020 is ideal for all types of content creators, from musicians and podcasters to streamers. This side-address condenser microphone offers critically acclaimed sound and handles high SPLs effortlessly. With a cardioid polar pattern, this quality mic delivers unmatched sound and reliable performance without any unwanted background noise. The AT2020 condenser microphone is the perfect solution for any home recording studio at an affordable price.

Features

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

Specifications

• Element
• Fixed-charge back plate, permanently polarized condenser
• Polar Pattern
• Cardioid
• Frequency Response
• 20-20,000 Hz
• Open Circuit Sensitivity
• -37 dB (14.1 mV) re 1V at 1 Pa
• Maximum Input Sound Level
• 144 dB SPL, 1 kHz at 1% T.H.D.
• Noise
• 20 dB SPL
• Dynamic Range
• 124 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio
• 74 dB, 1 kHz at 1 Pa
• Phantom Power Requirements
• 48V DC, 2 mA typical
• Weight
• 12.1 oz (345 g)
• Dimensions
• 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
• Output Connector
• Integral 3-pin XLRM-type
• Accessories Included
• Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• Audio-Technica Case Style
• R7

Model:	AT2020
Manufacturer:	Audio Technica
