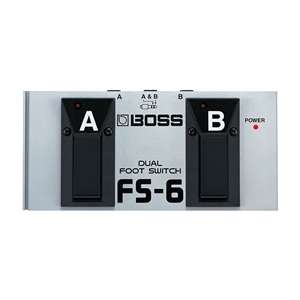

Boss FS-6 Dual Latching / Momentary Footswitch

---

DOUBLE YOUR SWITCHING POWER

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.



Features:

• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U



Specifications:

• Controls
• Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B
• Connectors
• Jack A, Jack B (1/4 inch phone type) Jack A & B (TRS 1/4 inch phone type)
• Power Supply
• DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
• Current Draw
• 8 mA (max.)
• Accessories
• Dry battery/9 V (6F22), Owner's Manual



Size and Weight:

• Width
• 188 mm | 7-7/16 inches
• Depth
• 91 mm | 3-5/8 inches
• Height
• 43 mm | 1-3/4 inches
• Weight
• 470 g | 1 lbs. 1 oz.

Model:	FS6
Manufacturer:	Boss
