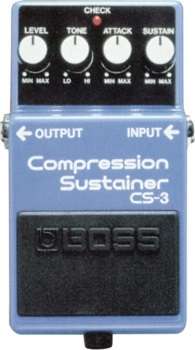

Boss CS-3 Compression Sustainer

---

IMPROVES YOUR OVERALL TONE

The CS-3 Compression Sustainer pedal compresses louder signals while boosting lower signals, providing smooth sustain without degrading the original sound quality. This is the perfect pedal for guitarists and bassists who want to sound their best.

Features

Compact compression/sustainer pedal with high-quality circuitry Compresses loud signals and boosts softer signals for a smooth overall sound Onboard Level, Tone, Attack and Sustain controls for precise tonal shaping Low-noise design for super-quiet operation BOSS five-year warranty

Specifications

• Nominal Input Level
• -20 dBu
• Input Impedance
• 1 M ohm
• Nominal Output Level
• -20 dBu
• Output Impedance
• 1 k ohm
• Recommended Load Impedance
• 10 k ohms or greater
• Bypass
• Buffered bypass
• Controls
• SUSTAIN knob, ATTACK knob, TONE knob, LEVEL knob, Pedal switch
• Indicator
• CHECK indicator (Serves also as battery check indicator)
• Connectors
• INPUT jack: 1/4-inch phone type; OUTPUT jack: 1/4-inch phone type; DC IN jack
• Power Supply
• Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61); AC adaptor (PSA series: sold separately)
• Current Draw
• 20 mA
• Expected battery life under continuous use Carbon: Approx. 10.5 hours; Alkaline: Approx. 26 hours; *These figures will vary depending on the actual conditions of use.
• Accessories
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"); Dry battery/9 V type (6F22)
• Options (sold separately)
• AC adaptor: PSA series

Size & Weight

• Width
• 73 mm (2-7/8 inches)
• Depth
• 129 mm (5-1/8 inches)
• Height
• 59 mm (2-3/8 inches)
• Weight
• 380 g (14 oz)

Model:	CS3
Manufacturer:	Boss
