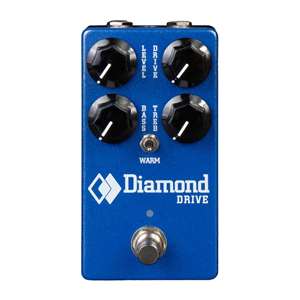

Diamond Drive Burr-Brown Overdrive with Dual-band Active Baxandall EQ

---

DIAMOND DRIVE

Drenched in classic Diamond DNA, the next-gen Diamond Drive is built on a foundation of signature drive and EQ soundblocks. Distilling the most desirable and functional elements of the original J-Drive, Blaze and Fireburst pedals, the Diamond Drive combines a warm and wide-ranging overdrive built around a Premium Sound Burr-Brown Op-amp with a dual band, post-gain active EQ.





TAILORED FOR ANY OCCASION

The Burr-Brown equipped drive section delivers anything from a gritty clean boost to thick, natural asymmetric saturation while the dual-band active Baxandall EQ and selectable Warm High Shelf Filter dial it all in to perfection.



THE NEW STANDARD

For the modern pedal-user's needs. Space saving design, without any loss of quality. The Diamond Drive package is complete with top-mounted jacks, 9-18VDC operation and relay based true bypass switching.



Specifications:

• Input Impedance:
• > 1 MΩ
• Output Impedance:
• < 10 KΩ
• Switching:
• Relay True Bypass
• Power Requirement:
• 9-18 VDC , negative tip, 2.1 mm barrel jack.
• Current Draw @ 9 VDC :
• 17 mA
• Baxandall EQ Bass Frequency:
• 150 Hz +|- 6 dB
• Baxandall EQ Treble Frequency:
• 3 KHz +|- 6 dB
• Warm Shelf Filter Frequency:
• 1 KHz +|- 4.5 dB
• Dimensions:
• 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58 ")
• Weight:
• 280 g
• Origin
• Made In Canada

Model:	DIAMONDDRIVE
Manufacturer:	Diamond
