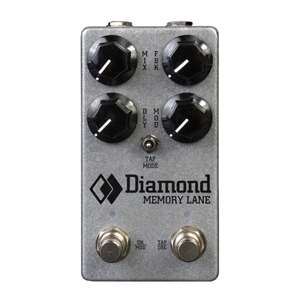

Diamond Memory Lane Delay Effect Pedal

---

Memory Lane

Blending analog companding, anti-aliasing|reconstruction filters with a bucket brigade style delay line, the ethereal essence of the original big-box Memory Lane using Diamond’s innovative digital Bucket Brigade Delay technology (dBBD) has been immaculately captured. Basically, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.

This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds.





Three Distinct Delay Modes

The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.



The New Standard

For the modern pedal-user's needs. Space saving design, without any loss of quality. Features include top mounted jacks, Burr-Brown equipped buffered bypass with optional trails, tap tempo with subdivisions, AutoDiv, Doubler, momentary or latching modulation and more.





Specifications:

• Input Impedance:
• > 1MΩ
• Output Impedance:
• < 10KΩ
• Switching:
• Buffered Bypass
• Power Requirement:
• 9 VDC , negative tip, 2.1 mm barrel jack.
• Current Draw @ 9 VDC :
• 45mA
• Dimensions:
• 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")
• Weight:
• 300 g

Model:	MEMORYLANE
Manufacturer:	Diamond
