Zvex Effects Fat Fuzz Factory (Hand-Painted)

---

Fat Fuzz Factory

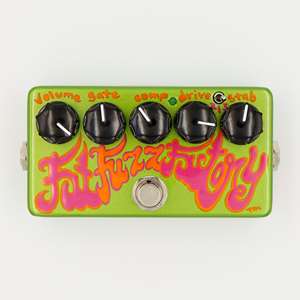

Hand Painted pedals feature a lifetime warranty. The color of the lettering varies on the Hand Painted Fat Fuzz Factory, not limited to the example pictured here.

---

Ladies and gentlemen, we’d like to introduce you to the Fat Fuzz Factory™, a take on an original flag ship Fuzz Factory™. The Fat Fuzz Factory™ features a sub switch that opens the pedal up to an astounding new bottom end. This means the pedal can oscillate at much lower registers, giving it some very interesting thunder broom synth qualities. Based on field reports, this new fatness lends itself particularly well to the bass guitar, and rips equally well on guitar.



A version of the Fuzz Factory. This variation features a three position mini toggle switch. Setting 1 is a standard Fuzz Factory, settings 2 and 3 introduce “low” and “lower” frequencies to manipulate, oscillate, and mutate as you like. The Fat Fuzz Factory sounds fantastic on both guitar and bass!



SUBS SWITCH:

• 1) Sub Level 1. Original Fuzz Factory™
• 2) Sub Level 2. Woof!
• 3) Sub Level 3. Look Out!!



Controls

Volume:
Output level.

Gate:
Squelches noise after end of sustain. Turn to right to eliminate squeals, hiss and buzz, stopping just as they disappear, or use to tune in exact feedback pitch, if you’re that kind. Turning to left opens gate.

Comp:
Adds attack characteristic when turned to left, which gets softer to right, and suddenly pinches tone when all the way right. Also use to tune in fat feedbacky fuzz, if you’re that kind. Lower the Stability and see what happens to this control.

Drive:
Increases distortion when used as a “normal” fuzz, and adjusts feedback pitch and tonal thickness, if you’re that kind. This control becomes meaningless when Compress is all the way right.

Stab
Use all the way right. Do not attempt to adjust this control below 2:00, unless you like your fuzz soft and squishy. Use to control feedback pitch. WARNING: Many “incorrect” settings on this pedal squeal. This may annoy the fainthearted. If you use the example settings, you won’t get hurt. We don’t want to see anyone hurt. Don’t forget to memorize or write down your favorite settings.

Pedal Dimensions (LxWxH):
4.70" x 2.38" x 1.82"

Model:	ZVHPFFF
Manufacturer:	Zvex
