Yamaha PSR-E473 61-Key Portable Keyboard
61
South
Out of stock
North
Out of stock
A revolution in portable music
The touch-sensitive keyboard and powerful sound engine of the PSR-E473 bring together superb sound and great feel in an all-new portable instrument.
Features:
- 820 Voices and Super Articulation Lite Voices
- 290 Styles
- 2 channels/41 types of DSP insertion effects
- Quick Sampling
- Groove Creator
- Live Control Knobs, Motion Effect functionality, pitch bend wheel
- Mega Boost
- Direct Category Access buttons
- USB Audio Recording/Interface
- Mic input and vocal effects
- Individual L/R outputs
Sound like a pro!
The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.
820 Voices
The PSR-E473 expands on previous generations with an increased internal storage capacity that allows Yamaha to provide more, higher-resolution instrument Voices. Enjoy 820 realistic, expressive instrument sounds from here and around the world with pro-level sound quality.
Super Articulation Lite
The PSR-E473 is equipped with Super Articulation Lite, a function that realistically simulates the distinct ways each instrument is played—for example, the scratch sound of a distorted electric guitar or the harmonics of a nylon-string guitar.
290 Styles
Choose from 290 automatic accompaniment Styles including rock, dance, and jazz as well a wide range of musical genres from around the world. Experience the thrill of playing in your very own band as the Styles respond to your left hand with just the right rhythms, bass, and chords.
World Content
Enjoy Voices and Styles that enable you to emulate music from anywhere around the world. No matter what Style you enjoy, it is loyal and authentic to the country or region where that genre originated.
DSP Effects
The PSR-E473 is one of the only models in the PSR-E series to feature two channels for insertion effects. Equipped with the latest LSI tone generator, this instrument delivers high-quality effects previously available only with high-end models.
Express yourself
Yamaha revamped the control panel and LCD, phased out the numeric keypad, and added Direct Category Access buttons. The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative. With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.
Live Control Knobs
The two Live Control Knobs make it easy to manipulate and interact with the sound you produce as you play. The ability to set the filter cutoff frequency to change the brightness of the sound and control effects in real time helps bring your performances to life.
Motion Effect
The Motion Effect function lets you instantly add effects while you play that can morph the sound with a filter, create pitch risers, add tape stop effects & slices, or other new dynamic sound effects. All by simply holding down the button!
Pitch Bend Wheel
Moving the pitch bend wheel up or down changes the note you're playing smoothly, bringing instrument Voices like guitars, sax and trumpet and synthesizers to life, widening your range of expression.
Direct Category Access
Yamaha added Direct Category Access buttons to the user interface. Push the buttons for instantaneous access to the Voices and Styles you need for the musical genre of your choice.
Groove Creator
With Groove Creator, buttons and knobs are all you need to create contemporary electronic music and sound like a pro.

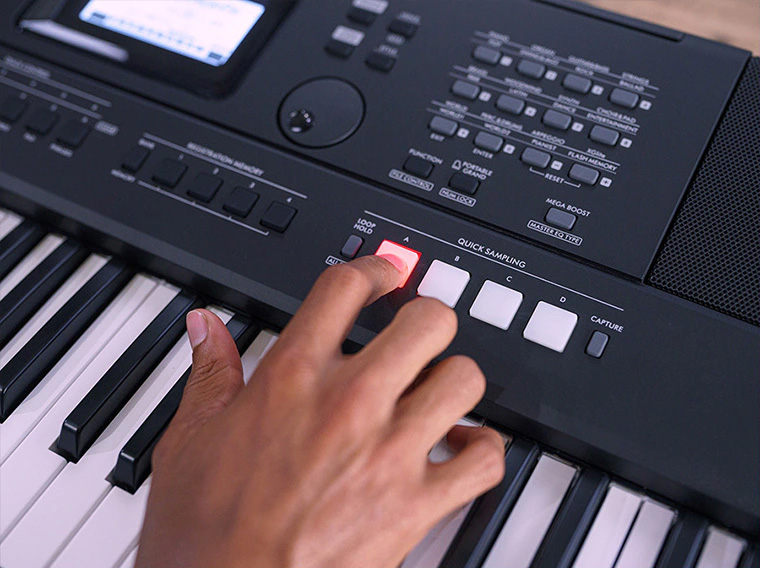

Quick Sampling
Capture sound from outside of your instrument using the AUX input, microphone input or even by importing files from a USB storage device, and then play those sounds directly from your keyboard. The possibilities are endless!
Connect and share
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.
Individual L/R Output
The PSR-E473 comes equipped with left and right audio outputs that allow you to easily connect to PA systems and studio equipment - separate from the headphone jack.
Mega Boost
Press the Mega Boost button to add +6dB of powerful volume! This function adds 6dB to the apparent volume set by the volume knob. Adding a boost to the instrument's speaker volume allows you to play with others or be heard above the crowd, even without a PA system.
Mic Input & Vocal Effect
Connect a microphone and sing along with your playing while using built-in studio-quality vocal effects, giving you everything you need for a pro-sounding performance.
USB Audio Recording/Interface
Use the USB To Device port to record and play back audio files of your music from USB flash drives. Use the USB To Host port to send and receive audio and MIDI data to and from computers and smart devices with studio-quality.
Rec'n'Share
Use the Rec'n'Share app to connect your instrument to a smart device, and then create and share audio and video recordings of you playing along with your favorite songs.
Other Features:
- Registration Memory
- Dual / Layers
- Octave Shift / Transpose
- Split
- Arpeggio Funtion
Specifications:
- Number of Keys
- 61
- Touch Response
- Yes (Soft, Medium, Hard, Fixed)
- Keyboard Type
- Organ-style
- Pitch Bend
- Yes
- Art. Switches
- Yes
- Control Knobs
- 2
- Display Type
- LCD
- Backlight
- Yes
- Panel Language
- English
- Registration Buttons
- 4 (x 8 banks)
- Registration Control
- Freeze
- Metronome
- Yes
- Tempo Range
- 11 – 280
- Transpose
- -12 to 0, 0 to +12
- Tuning
- 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
- Octave Button
- Yes
- Scale Type
- 5 types
- Piano Button
- Yes (Portable Grand Button)
- Other Functions
- Mega Boost, Motion Effect (57 types)
- Internal Memory
- Approx. 1.72 MB
- External Drives
- USB flash drive
Tone Generation:
- Tone Generating Technology
- AWM Stereo Sampling
- Number of Polyphony
- 64 (Max)
- Preset Number of Voices
- 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
- Featured Voices
- 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
- GM Compatibility
- Yes
- XGlite Compatability
- Yes
Effects:
- DSP
- DSP1: 41 types, DSP2: 12 types
- Reverb
- 12 types
- Chorus
- 5 types
- Master EQ
- 4 types
- Dual Layers
- Yes
- Split
- Yes
- Melody Suppressor
- Yes (w/ pan adjustment)
- Crossfade
- Yes (between Internal Sound and External Audio)
- Harmony/Echo
- 26 types
- Arpeggio
- 152 types
Accompaniment:
- Number of Preset Styles
- 290
- Fingering
- Multi finger, Smart Chord
- Style Control
- ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
- One Touch Setting (OTS)
- Yes
- Expansion Style
- 10
- Compatibility
- Style File Format (SFF)
- Number of Grooves
- 35
- Number of Sections
- 5 (4 Sections + 1 Musical Climax/Ending)
Songs:
- Number of Preset Songs
- 30
- Number of Recording Songs
- 10
- Number of Recording Tracks
- 6 (5 Melody + 1 Style/Groove Creator)
- Recording Data Capacity
- Approx. 19,000 notes (when only “melody” tracks are recorded
- Playback Format
- SMF (Formats 0 & 1)
- Recording Format
- Original File Format (SMF 0 conversion function)
- USB Audio Recorder
- 80 minutes (approx. 0.9 GB) per Song
- USB Audio Format
- WAV (44.1 kHz, 16 bit, stereo)
- Sampling Type
- One-shot, Loop
- Samples (Preset/User)
- 4
- Sampling Time
- Approx. 9.6 sec
- Sampling Sources
- AUX IN, MIC INPUT, USB audio interface, WAV format files
- Sampling Format
- Original File Format (16 bit, stereo)
- Sampling Rate
- 44.1 kHz
Connectivity:
- DC In
- 12 V
- AUX IN
- Stereo mini jack x 1
- Headphones
- Standard stereo phone jack x 1
- Sustain Pedal
- Yes
- USB TO DEVICE
- Yes
- USB TO HOST
- Yes
- OUTPUT
- Standard phone jack x 2
- Microphone
- Standard phone jack x 1
Amplifiers and Speakers:
- Amplifiers
- 6 W + 6 W
- Speakers
- 12 cm x 2
Power:
- Power Supply
- AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
- Power Consumption
- 9 W (When using PA-150 AC adaptor)
- Auto Power Off Function
- Off/5/10/15/30/60/120 (minutes)
Accessories:
- Music Rest
- Yes
- Song Book
- Download from Yamaha web site
Size and Weight:
- Width
- 992 mm (39-1/16”)
- Height
- 136 mm (5-3/8”)
- Depth
- 404 mm (15-7/8”)
- Weight
- 7.0 kg (15 lb, 7 oz) (not including batteries)
| Model: | PSRE473 |
| Manufacturer: | Yamaha |
