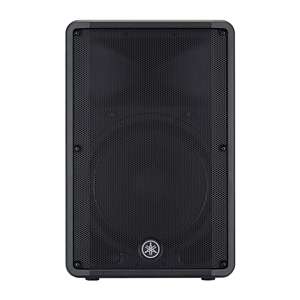

Yamaha CBR15 - 15" 2-way Passive Bass Reflex Loudspeaker

---

POWER TO PLAY

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications.





Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound

CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.



HF Protection and Highly Responsive LF Unit for Reliable Performance at Any Output Level

Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.



Rugged, Highly Portable Enclosure Design

CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.





Specifications:

• Speaker type
• 2-way Speaker, Bass-reflex Type
• Frequency range (-10dB)
• 46 Hz - 20 kHz
• Nominal coverage
• H : 90°
  V : 60°
• Components
• LF : 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
  HF : 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
• Crossover
• 2.0 kHz
• Power rating
• NOISE : 250W
  PGM : 500W
  PEAK : 1000
• Nominal impedance
• 8Ω
• SPL
• Sensitivity (1W; 1m on axis) : 96dB SPL
  Peak (Calculated) : 126 dB SPL
• I/O connectors
• 1/4" Phone x 1, speakON NL4MP x 1
• Cabinet material
• Plastic
• Finish
• Black
• Handle
• Side x 2
• Flying and mounting hardware
• Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
• Pole socket
• 35 mm　Bottom x 1
• Dimensions
• W : 455mm (17.9")
  H : 700mm (27.6")
  D : 378mm (14.9")
• Net weight
• 17.7 kg (39.0 lbs)

Model:	CBR15
Manufacturer:	Yamaha
