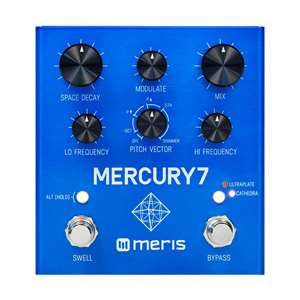

Meris Mercury7 Reverb - Off-World Ambience
Reverb
South
1 in stock.
North
Out of stock
REPLICANTS STANDBY
Inspired by the 1982 Bladerunner film soundtrack
Take your guitars and synths to new ambient worlds and be inspired by real time tactile controls, an extensive modulation matrix, intra-tank pitch regen, and ambient swell.
Mercury7 Features:
- Handcrafted Algorithmic Reverbs
- Analog Mix & Dry Signal Path
- High & Low Frequency Damping
- Extensive Modulation Capability
- Auto Swell Envelope (variable and foot-switchable)
- Stereo input and output
- Switchable input output headroom level for Guitar, Synthesizer or Line levels
- MIDI in/out over TRS via the EXP jack with compatible MIDI to TRS conversion box (not included)
- Multi-function EXP jack for optional expansion: MIDI, Preset Switch, Expression Pedal or Tap Switch with compatible hardware. (Expansion hardware not included)
- Expression pedal control over all parameters simultaneously
- Presets available via external 4-Preset switch or MIDI
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Color – translucent coat of deep blue over brushed aluminum
- Designed and built in Los Angeles, California U.S.A.
Space Decay
Sets decay energy of the reverberation space.
Alt Function: Predelay Sets amount of time that elapses before the onset of reverberation.
Modulate
Sets overall modulation depth of the reverb algorithm.
Alt Function: Mod Speed
Sets dominant modulation speed of the reverb algorithm.
Pitch Vector
Sets intra tank pitch interval to: Octave down, slight pitch up, slight pitch down, 5th up, or octave up. Decay, Pitch Vector Mix & Hi/Lo Freq controls all interact to sculpt the intra-tank pitch regeneration.
Alt Function: Attack Time
Sets the attack time for the swell envelope
Lo Frequency
Changes how low frequencies react in the reverb algorithm. When set closer to max, low frequency decay times are extended giving the impression of a larger room.
Alt Function: Density
Sets amount of initial build up of echoes before the reverb tank.
Hi Frequency
Changes how high frequencies react in the reverb algorithm and alters the high frequency absorbtion of the reverb space. Set lower to reduce the amount of time high frequencies live in the algorithm for a more natural room reverb.
Alt Function: Vibrato Depth
Adds vibrato to the reverb input for lush, haunting trails.
Mix
Adjusts Mix of Dry and Wet signals in analog domain.
Alt Function: Pitch Vector Mix
Adjusts mix between intra-tank pitch shifted reflections and normal reflections inside the reverb tank.
Swell
Press to engage the auto swell function. Hold to maximize Space Decay sustain
Algorithm Select Switch
- ULTRAPLATE:
- Inspiring & lush plate with a fast build.
- CATHEDRA:
- Massive & ethereal algo with a slow build.
Specifications:
- Premium quality 24 bit A/D and D/A
- 32 Bit floating point DSP hardware
- -115 dB Signal to Noise Ratio (typical)
- Premium low noise Analog signal path throughout
- Auto Swell Envelope (variable and foot-switchable)
- Analog Devices JFET input circuitry
- Wet/Dry signal mix occurs in the Analog domain
- Selectable True Bypass (Relay) or Analog Buffered Bypass
- Durable transparent blue powder coat over brushed aluminum
- Current draw < 150 mA
- Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
| Model: | A1M7P |
| Manufacturer: | Meris |
