Meris Enzo Multi-Voice Instrument Synthesizer
Synth
South
1 in stock.
North
1 in stock.
OSCILLATING DUALITY
Alternate Waves
“The mind of man is capable of anything–because everything is in it, all the past as well as all the future.” – Joseph Conrad

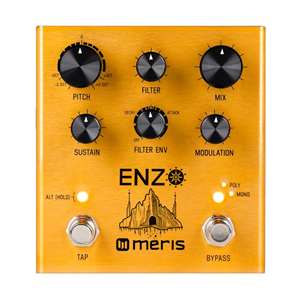

Enzo is a multi-voice synthesizer that will track your guitar for tight monosynth leads, complex chord polyphony, or multi-note sequenced arpeggiation. All without any special pickup installation. Just put it on your board and discover your own reality. The Enzo isn’t limited to guitar; use it on any instrument whether drum machine, vocals or other synths. Completely transform your input signal and synthesize. Use the full synth palette of multimode analog style synth filters, ring modulation, envelopes and much much more to drive punchy, thick synth textures. Or, explore an altered state of your pure instrument signal by transforming it with pitch, time and modulation effects. Plug in to a revelation generator.
Enzo Features:
- Colossal Multi-Voice Dual Oscillator Synth architecture with selectable waveforms
- Three Synth modes: Poly Synth, Mono Synth, and Arpeggiated Synth
- Two Distinct Tunable Envelope Types: Triggered and Envelope Follower
- Tunable Portamento Time for smooth transitions between synth notes and pitch shifts
- Sustain control for extending your volume envelope all the way to endless synth hold
- Two Tap Delay with Time, Feedback, Modulation, and special two stage level control (530 mS max delay time)
- Adjustable Compressor with Threshold and Mix for your input signal (Dry mode)
- Custom 6 mode filter with frequency, bandwidth (resonance), and envelope
- Wide ranging Ring Modulation with ability to assign envelope control
- Digitally controlled Analog mix control
- Stereo input and output
- Switchable input / output headroom level for Guitar or Synth / Line level
- MIDI in/out over TRS via the EXP jack with compatible MIDI to TRS conversion box (not included)
- Multi-function EXP jack for optional expansion: MIDI, Preset Switch, Expression Pedal or Tap Switch with compatible hardware. (Expansion hardware not included)
- Expression pedal control over all parameters simultaneously
- Presets available via external 4-Preset switch or MIDI
- External Tap Tempo over TRS
- MIDI beat clock synchronization
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Color – translucent coat of vibrant gold over brushed aluminum
- Designed and built in Los Angeles, California U.S.A.
Pitch
Changes the pitch of the Synth or Dry signal in half step increments.
Alt Function: Portamento
Smoothly glide from one Synth note to another (Bends the pitch using the filter envelope as a modifier in Dry Mode)
Filter
Changes the cutoff frequency of the filter.
Alt Function: Filter Type
Select between 6 filter types (from Min to Max) : 1. Ladder Lowpass | 2. Ladder Shelving Bandpass | 3. Ladder Highpass | 4. State Variable Lowpass | 5. State Variable Bandpass |
6. State Variable Highpass
Filter Envelope
Sets attack and decay rates for the Triggered Envelope; sets the direction and sensitivity for the Envelope Follower.
Alt Function: Filter Bandwidth (Resonance)
Changes the filter from a wide bandwidth for gentle filtering to a narrow bandwidth for peaky filtering
Sustain
Increases the sustain of Synth notes (Compresses the input in Dry Mode)
Alt Function: Ring Modulation
Changes the frequency of a classic ring modulator. The filter envelope as a modifier.
Modulation
Detunes the oscillators of each Synth voice (Sets the amount of delay modulation in Dry mode).
Alt Function: Delay Feedback
Sets the repeats for the delay line.
Mix
Adjusts the balance between Dry and Wet signals.
Alt Function: Delay Level
Sets the level of a single delay tap from Min to Mid. After the Midpoint, this control blends in a second stereo tap.
Synth Modes:
- Poly:
- Multi-Voice Synthesizer with polyphonic chord tracking
- Mono:
- Single Voice Dual Osc Synth w/monophonic tracking
- Arp:
- Turns your chords into sequenced patterns linked to the tap tempo
- Dry:
- Disables the Synth. Allows the filter, delay and pitch shift to be applied to the input signal
Specifications:
- Premium quality 24 bit A/D and D/A
- 32 Bit floating point DSP hardware
- Premium low noise Analog signal path throughout
- Digitally controlled Analog Dry path for wet/dry mix
- Analog Devices JFET input circuitry
- Selectable True Bypass (Relay) or Analog Buffered Bypass
- Durable translucent coat of vibrant gold over brushed aluminum
- Current draw < 150 mA
- Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
| Model: | A1EZO |
| Manufacturer: | Meris |
