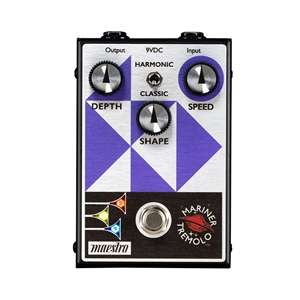

Maestro Mariner Tremolo Pedal

---

Two Tremolo Pedals in One

The Maestro Mariner Tremolo offers two amp-like tremolo options for “two pedals in one” functionality and increased sonic versatility. In Classic mode, you can swing from subtle, smooth amplitude modulation all the way to a sharper-edged, biting modulation, with many creative areas to explore in-between. In Harmonic mode, you can dial up timeless textural Harmonic Tremolo tones that are very reminiscent of the tones produced by a select few vintage amplifier tremolos. With its amp-like tones and ability to vary the tremolo’s wave shape, the Mariner Tremolo delivers a wide range of inspiring possibilities. The intuitive 3-knob control layout lets users quickly set the desired Depth (the intensity of the tremolo effect), control the Shape of the waveform (from a triangle wave to a square wave), and adjust the Speed of the tremolo effect. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.

Specs

• Switches
• True Bypass footswitch, Harmonic/Classic Mode toggle switch
• Led Indicators
• Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
• Signal Processing
• All-Analog
• Power Requirements
• 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
• Current Draw
• 41.9 mA
• Power On Switch
• Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
• Input Impedance
• 320 kOhms
• Output Impedance
• 1 kOhm
• Switching Type
• True Bypass
• Dimensions
• 5.04" x 3.45" x 2.50" (128.0 mm x 87.6 mm x 63.5 mm)
• Weight
• Net: 1.19 lb. (539.8 gm.) Gross: 1.56 lb. (707.6 gm.)

Model:	MOCMTP
Manufacturer:	Maestro
