Universal Audio Volt 276 Studio Pack
VOLTSB276
South
2 in stock.
North
3 in stock.
Everything you need for album-quality music productions.
Volt Studio Packs are the perfect way to jumpstart your home recording studio. Capture your music productions, livestreams, and podcasts with Universal Audio’s 2-in/2-out Volt 276 recording interface, featuring a Vintage Mic Preamp and built-in 76 compressor for classic studio sound.
This studio pack includes a condenser mic and cable, studio monitoring headphones, and a suite of music production software. So you’ll be recording like a pro, with album-ready sound right out of the box
Collaborate with Best-in-Class Audio Quality
From the team that brought you the game-changing Apollo interface, Volt 276 delivers superior studio sound quality, with more character and tone than any USB interface in its class.
Capture Classic Vocals with Vintage Mic Preamp Mode
Few sounds can compare to a vintage Universal Audio 610 tube preamp, as used to record everyone from Ray Charles to Van Halen. Volt 276 gives you the rich, full sound of this classic UA mic/line/instrument preamp, thanks to its built-in tube emulation circuitry, a UA exclusive.
Control Volume Peaks with UA Compression
Get album-ready punch and presence with Volt 276's onboard 76 Compressor — an innovative analog circuit inspired by UA's classic 1176 Limiting Amplifier. The 76 Compressor features three perfectly tailored presets to tame voice, guitars, synths, and drum machines. Just plug in, pick a setting, and play.
Stay Inspired with a Curated Suite of Audio Software
Some audio interfaces give you a smattering of random audio apps. Not Volt. Instead, UA put together a bundle of serious music production tools, virtual instruments, and plug-ins including Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more.
Easy In, Easy Out
Volt 276 gives you simple 2-in/2-out audio connections. Just plug your mics, guitars, or synths into the front panel. Then connect your speakers or headphones to monitor your audio with no latency. With Volt, you'll be creating like a pro, fast.
iPad & iPhone Ready
Traveling light? Plug Volt 276 right into your iPad or iPhone, and you can easily create beats and samples, record your band’s rehearsals, and edit songs anywhere. (Requires external Volt power supply and an Apple Lightning to USB Camera Adapter (except iPad Pro with USB-C)
Capture Inspiration for Years to Come
Featuring rugged metal construction, retro wood sides, and sleek industrial design, Volt 276 elevates your production space with impeccable style, built to last decades.
Specifications:
- Microphone/Line/Instrument Preamp Inputs
- Two Combo XLR/TRS
- 76 Compressor presets
- Selectable VOC, GTR, FAST, OFF
- Compression Ratio:
- 6:1
- Monitor Outputs
- Two (one stereo pair)
- Headphone Outputs
- One stereo
- USB
- One USB 2.0 port (USB Type-C connector)
- MIDI
- In, Out (two 5-pin DIN connectors)
- Supported Sample Rates (kHz)
- 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth Per Sample
- 24
- Vintage mode
- Selectable ON/OFF
Microphone Inputs:
- Frequency Response
- 20 Hz to 20 kHz, ±0.1 dB
- Dynamic Range (A–weighted)
- 112 dB
- Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
- -103 dB (0.0007 %)
- Equivalent Input Noise (150 Ohms, A-weighted)
- -127 dBu
- Maximum Input Level
- 9 dBu
- Input Impedance
- 3 Kilohms
- Available Gain
- 55 dB
- Phantom Power
- +48V (switchable)
- Connector Type
- XLR Female, pin 2 positive
Instrument Inputs:
- Frequency Response
- 20 Hz to 20 kHz, ±0.05 dB
- Dynamic Range (A–weighted)
- 111 dB
- Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
- -84 dB (0.006 %)
- Maximum Input Level
- 12.5 dBu
- Input Impedance
- 1 Megohms
- Gain Range
- 55 dB
- Connector Type
- ¼” TS unbalanced
Line Inputs:
- Frequency Response
- 20 Hz to 20 kHz, ±0.05 dB
- Dynamic Range (A–weighted)
- 111 dB
- Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
- -102 dB (0.0008 %)
- Maximum Input Level
- 22 dBu
- Input Impedance
- 15 Kilohms
- Gain Range
- 55 dB
- Connector Type
- ¼” TRS balanced or TS unbalanced
Monitor & Line Outputs:
- Frequency Response
- 20 Hz to 20 kHz, ±0.1 dB
- Dynamic Range (A–weighted)
- 110 dB
- Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
- -102.5 dB (0.00075%)
- Maximum Output Level
- 15 dBu
- Output Impedance
- 100 Ohms
- Connector Type
- ¼” TRS balanced or TS unbalanced
Stereo Headphone Outputs:
- Frequency Response
- 20 Hz to 20 kHz, ±0.1 dB
- Dynamic Range (100K load, A-weighted)
- 110 dB
- Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS, 300 Ohms)
- -100 dB (0.001%)
- Maximum Output Power into 32 Ohms
- 84 mW per channel
- Maximum Output Power into 300 Ohms
- 22 mW per channel
- Maximum Output Power into 600 Ohms
- 12 mW per channel
- Connector Type
- ¼” TRS Stereo

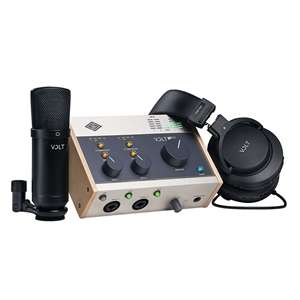

Package Contents:
- Volt 276 desktop 2-in/2-out USB 2.0 audio interface with 24-bit/192 kHz audio conversion, Vintage Mic Preamp mode, and 76 Compressor
- Studio condenser microphone for professional vocal and instrument recording
- Closed-back headphones for accurate mixing and monitoring
- Essential suite of audio and music software including Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more
- Standard XLR and USB-C to USB-A cables
| Model: | VOLTSB276 |
| Manufacturer: | Universal Audio |
