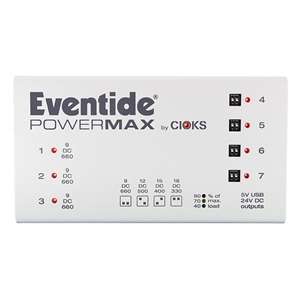

Eventide PowerMax - Ultimate Pedalboard Power Solution

---

Power up to 7 Pedals

PowerMax sets the new standard for versatility and performance in a trim, light, and easy-to-mount pedalboard power supply. PowerMax’s state-of-the-art design ensures your pedals will achieve maximum fidelity. PowerMax can power up to 7 high-current effect pedals and simultaneously charge your smartphone or tablet. Weighing only 1.1lb and 1″ thick, it’s a fit companion to H9 or any other pedals that grace your pedalboard. Features a state-of-the-art universal power supply (85-265V) that can be used worldwide.

Features

• New! 24V DC Aux isolated outlet for PowerMini Expander (adding 4 additional outputs) or other high-power pedal
• New! 7 isolated DC-outlets at 6W each
• 3 outlets with 9V DC 660mA
• 4 outlets each selectable with either 9V, 12V, 15V, or 18V up to 660mA
• Powers multiple Eventide, Strymon and other high current pedals
• Smallest and lightest in its class – only 1″ thick and 1.1lb
• USB outlet for charging a smartphone or tablet (max. 1A)
• Use anywhere in the world, mains input voltage 90-265V AC
• Ultra-low noise achieved by multi-stage filtering
• Individual status LED on each outlet and global status LED
• State-of-the-art 2-stage switch-mode power supply topology
• Extremely low profile, only 25mm (1-inch) thick
• Mounting hardware for Pedaltrain and Temple boards included
• Optional GRIP bracket provides drill-free mounting on Pedaltrain
• Built-in true power meter showing the total load
• 13 Flex cables included, 5 for Eventide pedals
• Designed in Denmark, assembled in Poland

Included Cables

• 1 x 4030-L 5.5/2.5mm centre positive angled DC plug, 30cm / 12”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2 x 4050-L 5.5/2.5mm centre positive angled DC plug, 50cm / 20”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 2 x 4080-L 5.5/2.5mm centre positive angled DC plug, 80cm / 31”, green, type 4 (for H9s, TimeFactor, PitchFactor, ModFactor or Space)
• 3 x 1030-L 5.5/2.1mm centre negative angled DC plug, 30cm / 12”, black, type 1 (BOSS standard)
• 2 x 1050-L 5.5/2.1mm centre negative angled DC plug, 50cm / 20”, black, type 1 (BOSS standard)
• 1 x 2050-L 5.5/2.1mm centre positive angled DC plug, 50cm / 20”, red, type 2
• 1 x 5050-L 3.5mm tip positive angled Jack plug, 50cm / 20”, black, type 5
• 1 x 1035 Split Flex (Y-cable) with two 5.5/2.1mm centre negative angled DC plugs, 30+50cm / 12+20”, black, type 1 (BOSS standard)

Connectors

• Mains input
• 90-265V AC universal IEC type
• Outlets 1-3
• 9V DC / 660mA
• Outlets 4-7
• 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
• USB Outlet
• 5V DC / 1A
• Total Output Power
• Max 42W

Physical

• Size
• 160 x 88 x 25.4mm / 6.30″ x 3.46″ x 1.00” (excl. rubber feet)
• Weight
• 460g / 1.1lb
• Warranty
• 5 years worldwide

Model:	POWERMAX
Manufacturer:	Eventide
